DM137
Metal-reinforced dust cover
Dimensions
| Upper inner diameter | 17 mm |
|---|---|
| Lower inner diameter | 31.5 mm |
| Height | 31 mm |
| Belly diameter | 41.5 mm |

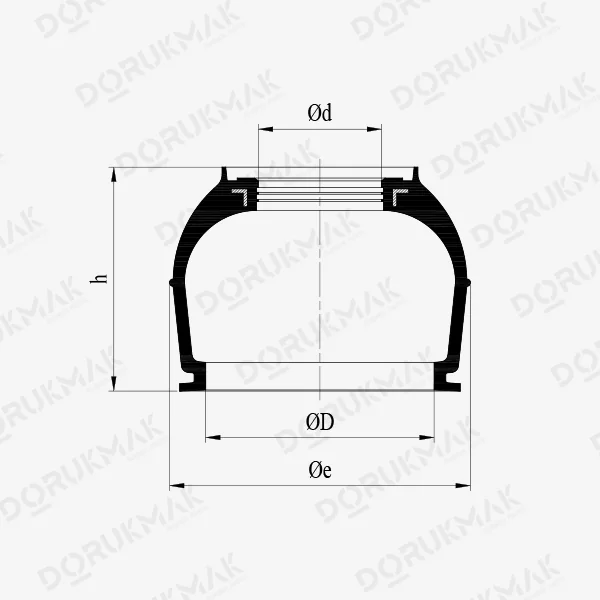

Dimensions are in millimetres, in the order the drawing gives them.
