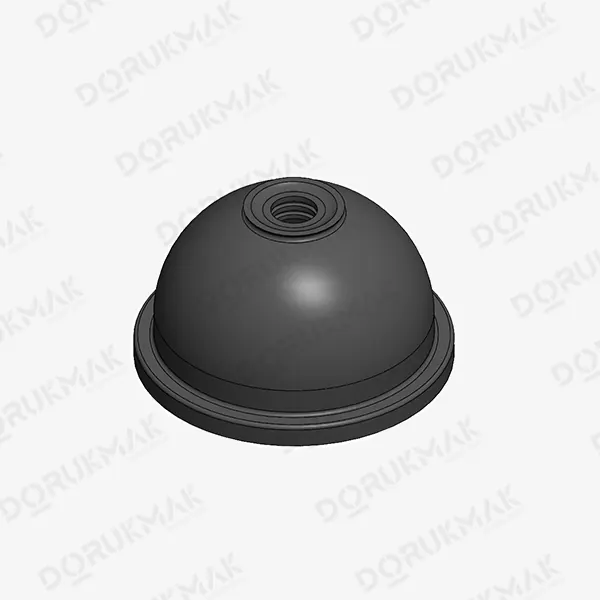

DM252
Metal-reinforced dust cover

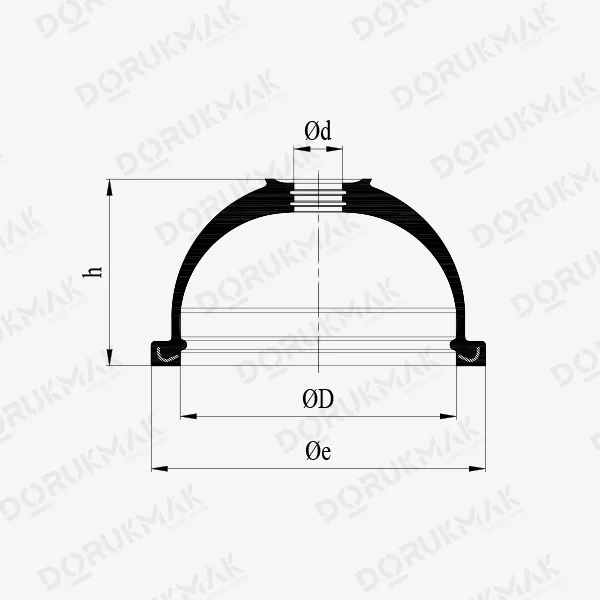

Dimensions
| Upper inner diameter | 6 mm |
|---|---|
| Lower inner diameter | 33.9 mm |
| Height | 23 mm |
| Belly diameter | 41 mm |
Dimensions are in millimetres, in the order the drawing gives them.
Request a quote for this part.
Add the part to your quote list and send it with the others in one request, or go straight to the form for this part and we carry the code into it.
Nearby sizes
From the same group, the parts closest in size.
-
-
-
- DK68 Plain dust cover Ød 13.5 · ØD 34 · h 24 · Øe 38.2
-
-
